Self Supporting Meat Rail Steel – Used Galvanised Structural Support Job Lot

Used self supporting meat rail support steel – surplus hot dip galvanised structural steel from a completed meat rail installation.

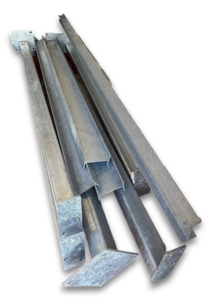

Includes SHS support legs, universal beams and fabricated stools.

Ideal for:

  • Self supporting meat rail systems
  • Meat rail support steel
  • Abattoir rail framework
  • Chiller rail structures
  • Industrial overhead rail installations

Storage: Stored indoors in dry warehouse conditions in Bristol, on pallets and off the ground.

Sale type: Sold as one complete job lot (no splitting).

Collection: Preferred. Delivery: Available at cost.

Estimated total weight: Approx. 550kg (guide only).

1 in stock

£1,995.00 (exc VAT) £2,394.00 (inc VAT)
Add To Quote
  • Fast Delivery
  • Expert Advice
  • Exclusive Deals

Features & Benefits

Designed for self supporting meat rail structures

Originally fabricated to support an overhead twin track meat rail system without reliance on existing building steelwork.

Suitable for:

  • Existing chillers with insufficient roof loading
  • Retrofitting meat rail systems
  • Creating independent support structures

Hot dip galvanised steel

All components galvanised to approximately 85 micron for corrosion resistance in washdown and chilled environments.

Industrial grade structural sections

Fabricated from:

  • 100 x 100 SHS columns
  • UB127 x 76 x 13 beams
  • UB152 x 89 x 16 beams

Suitable for adaptation by competent fabricators.

Immediate availability

No fabrication lead time. No galvanising delay. Ready for collection or dispatch.

Cost effective used meat rail support steel

Significant saving versus new fabricated structural steelwork.

Technical Specs

SHS Support Legs – 100 x 100

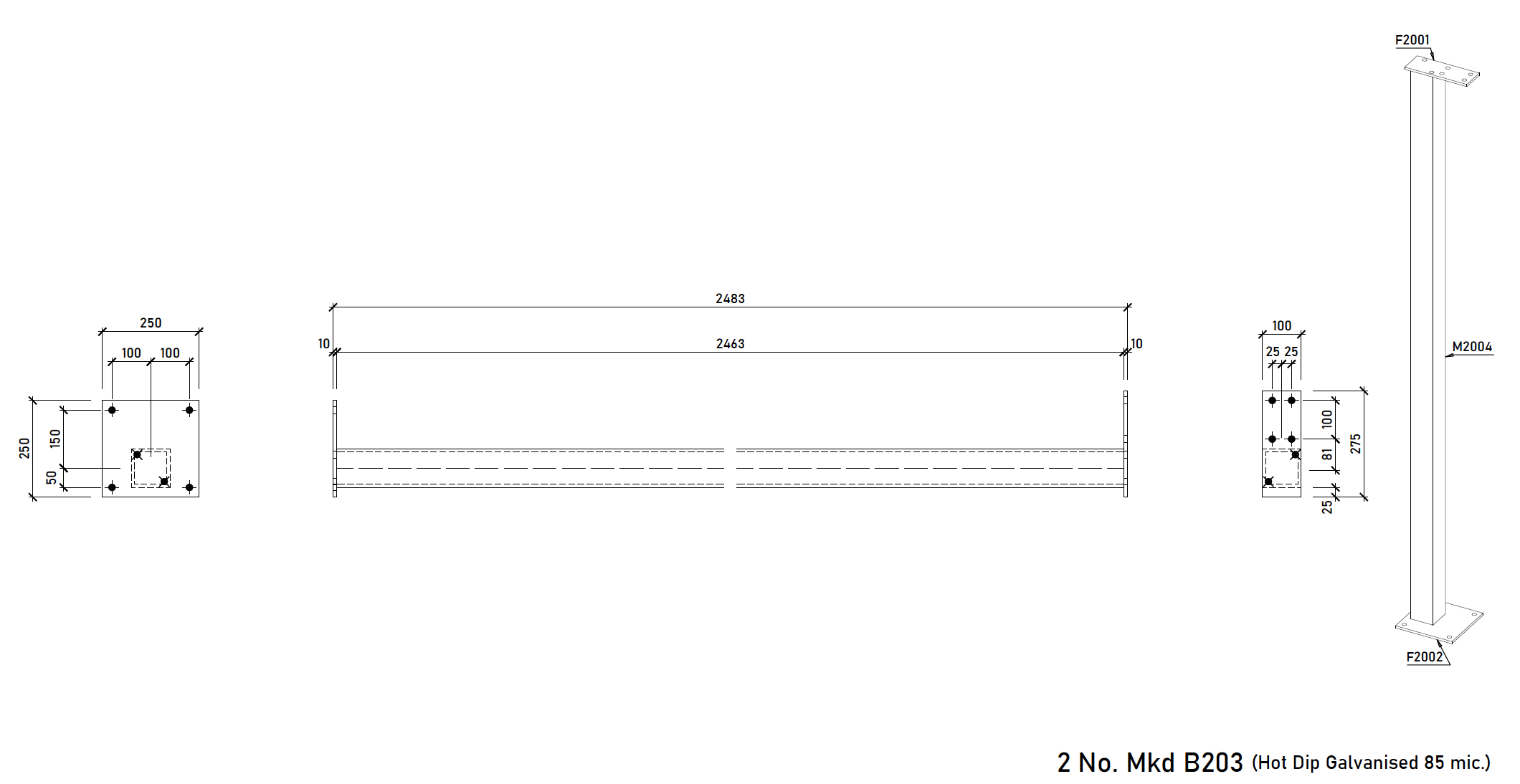

  • 2 x 2483mm high

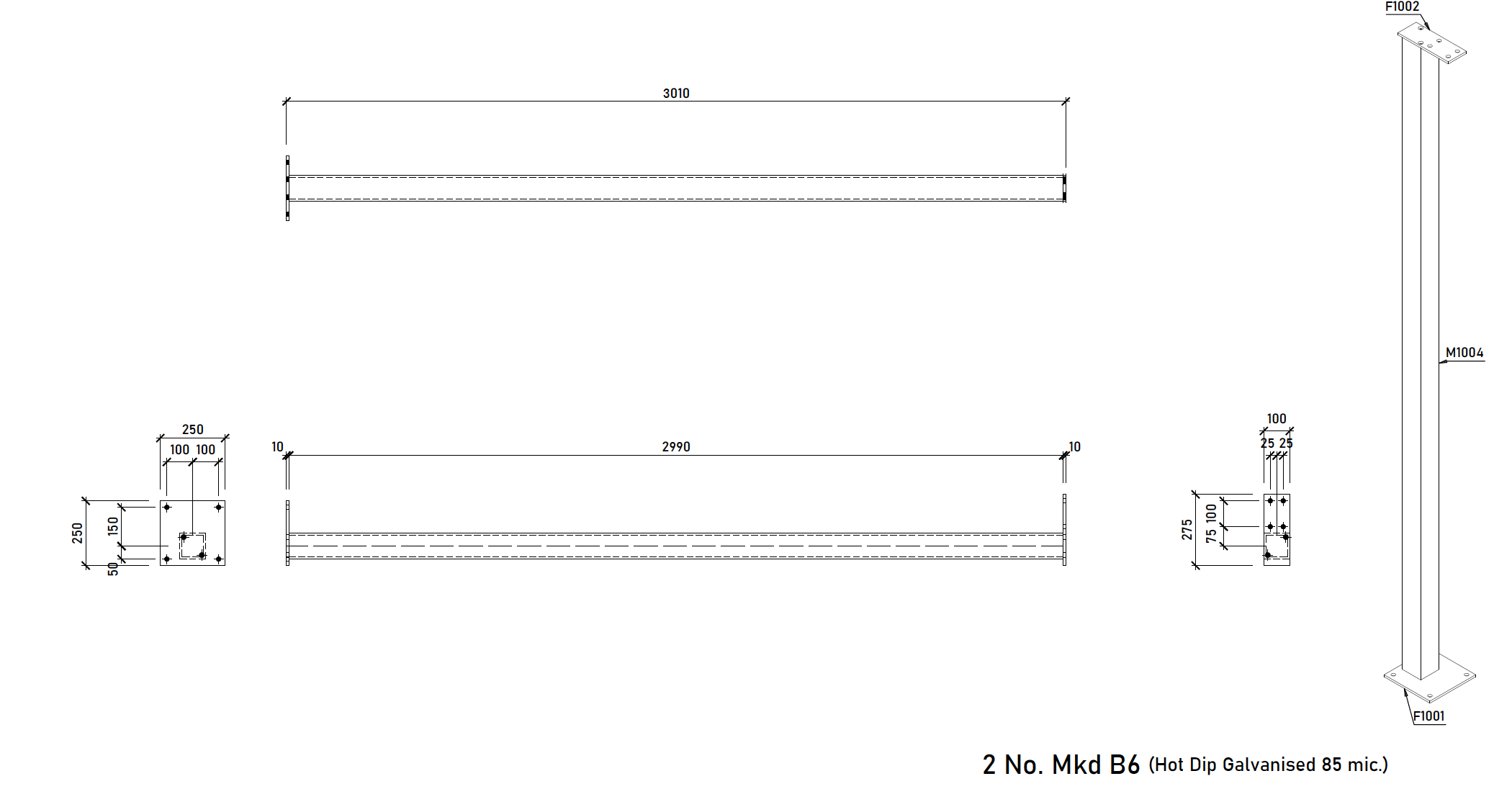

  • 2 x 3010mm high

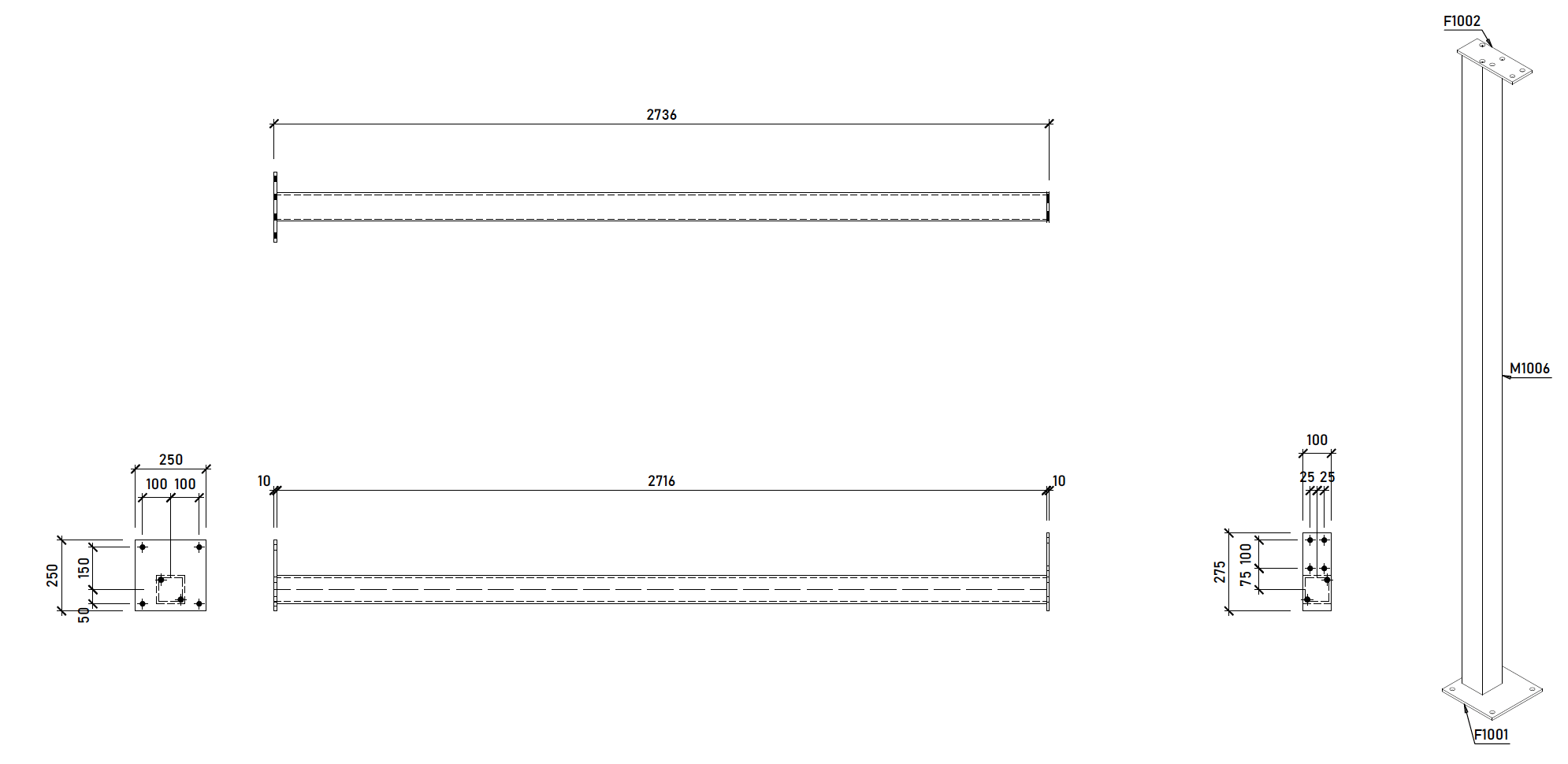

  • 1 x 2736mm high
  • Welded base plates
  • Welded top plates
  • Pre-drilled for bolted connections
  • Hot dip galvanised

Universal Beams

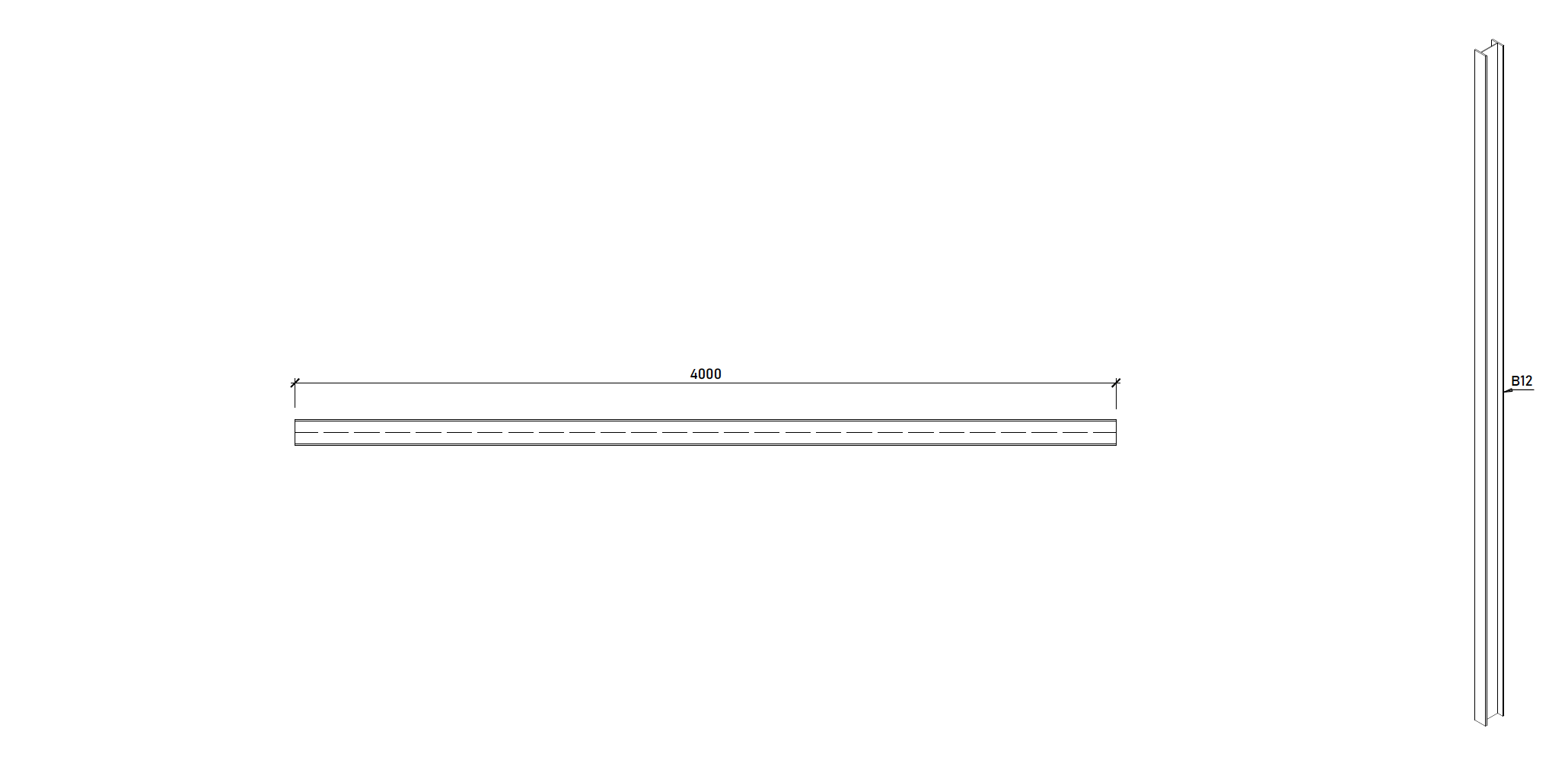

UB127 x 76 x 13

  • 1 x 4000mm

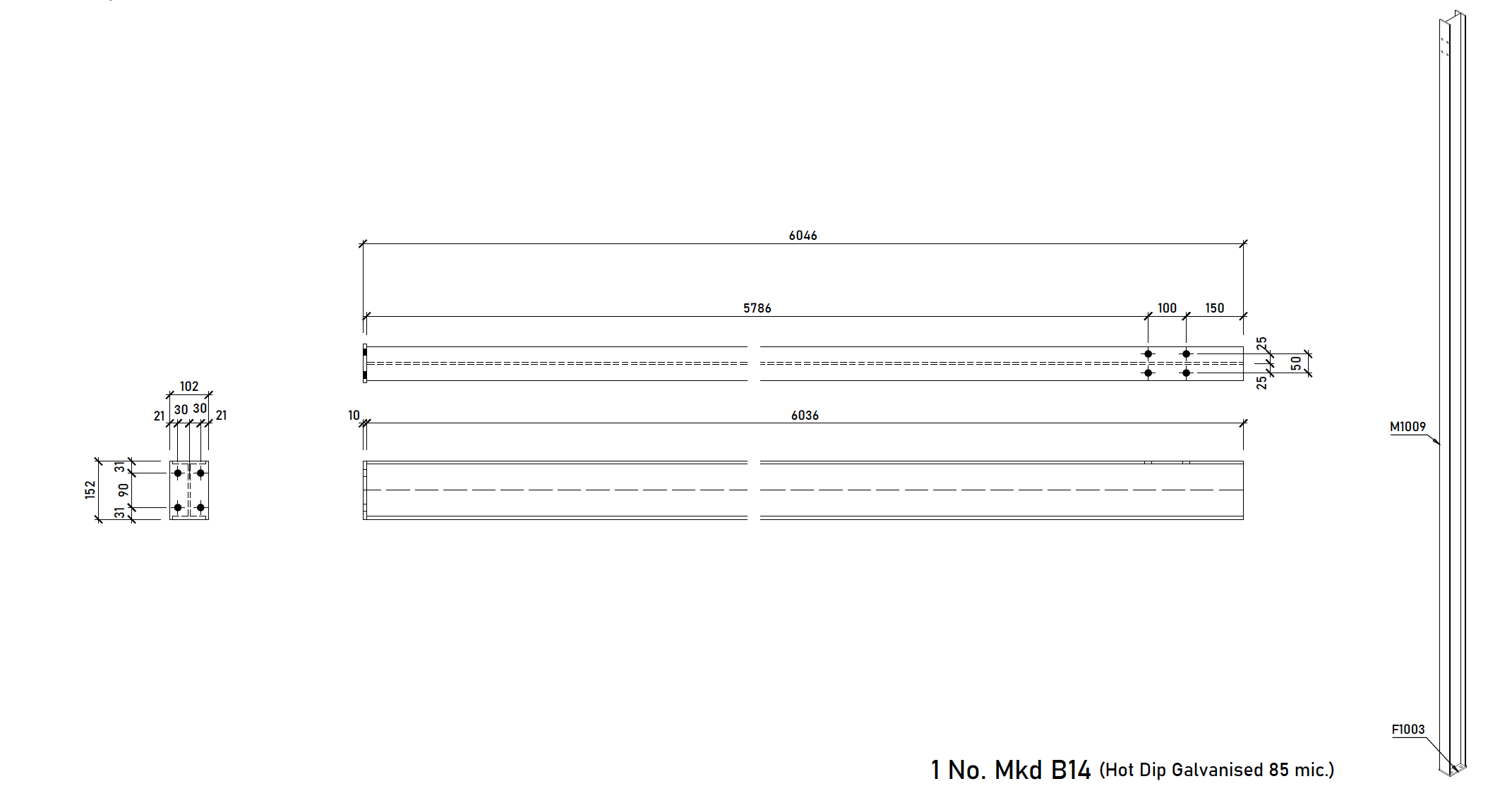

  • 1 x 2500mm

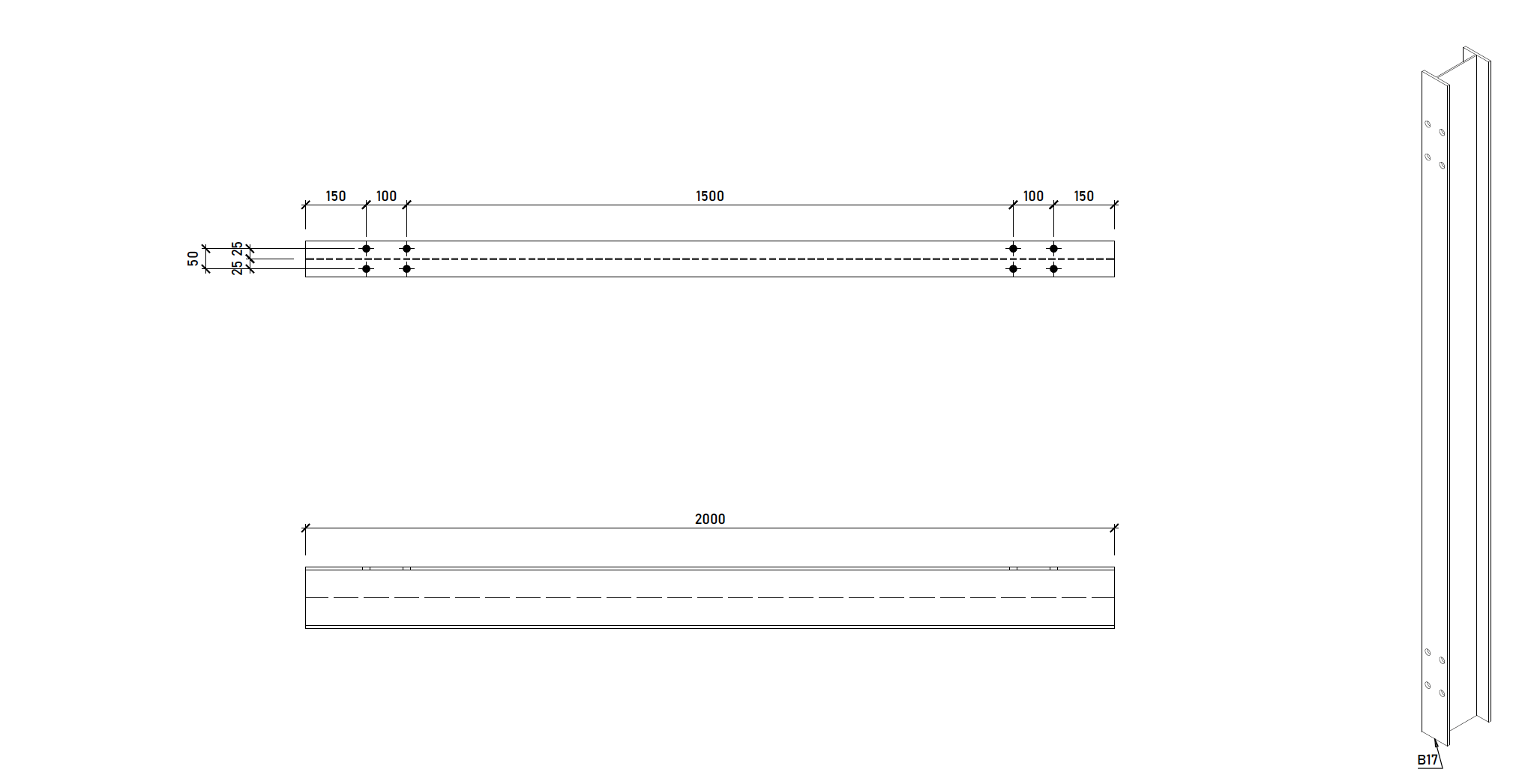

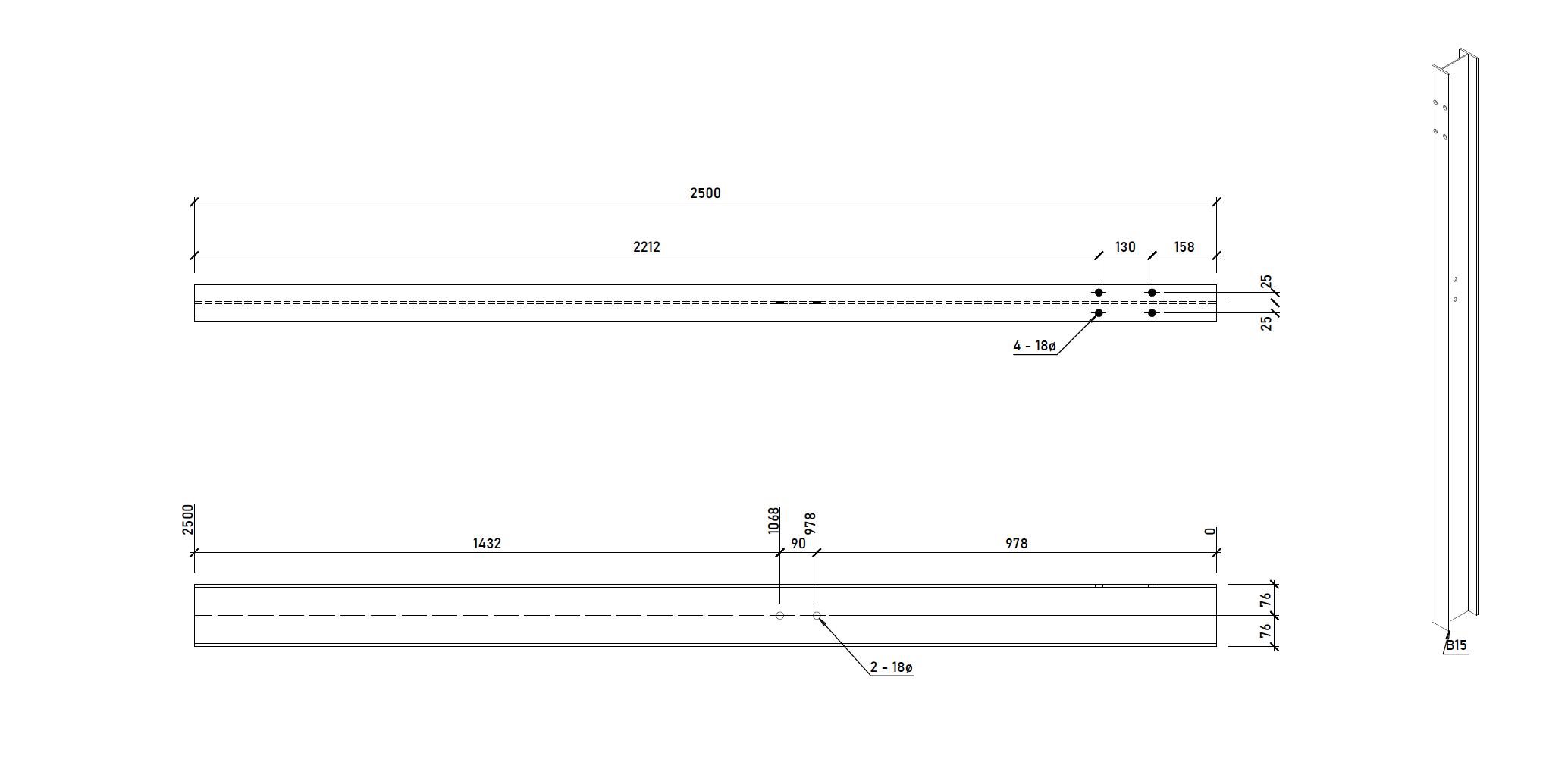

UB152 x 89 x 16

  • 1 x 2500mm
  • 1 x 2000mm

All beams drilled and hot dip galvanised.

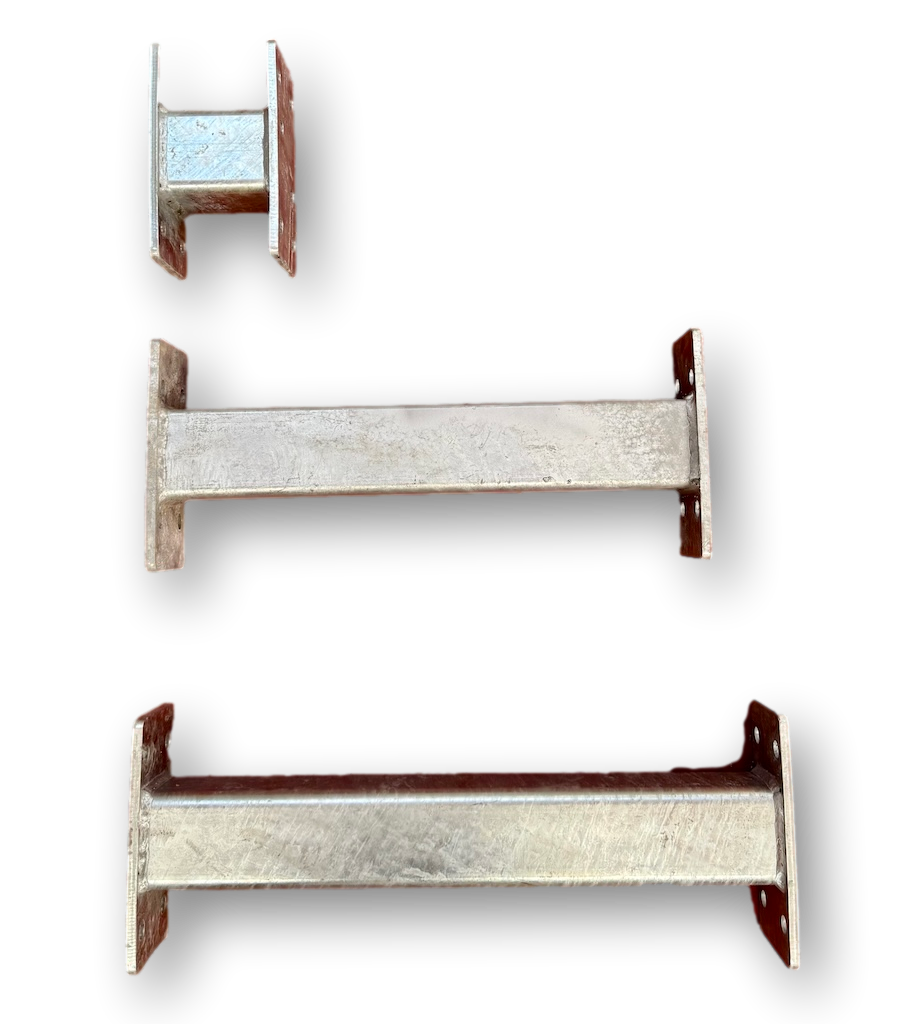

Fabricated Stools

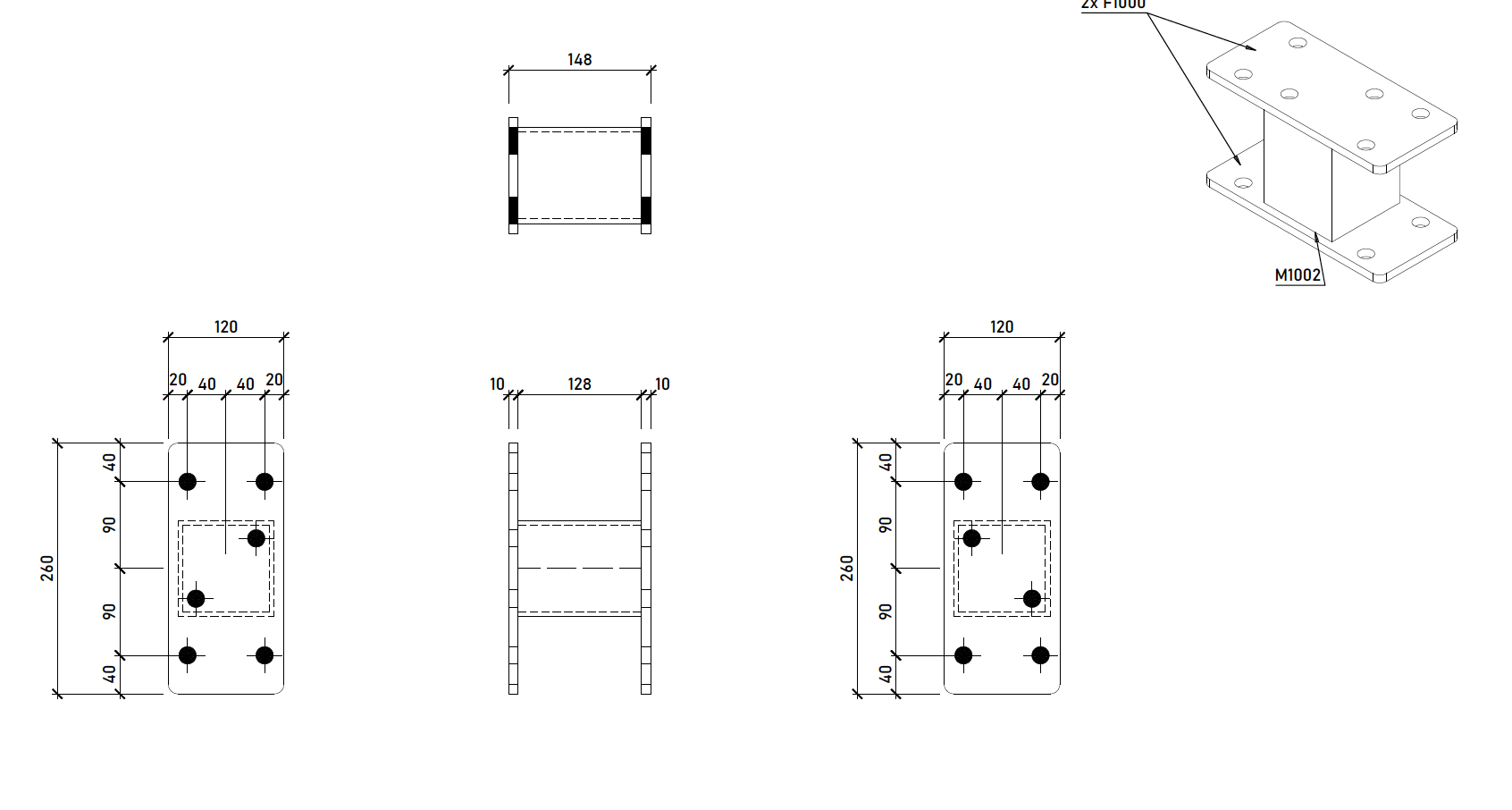

  • 148mm stool

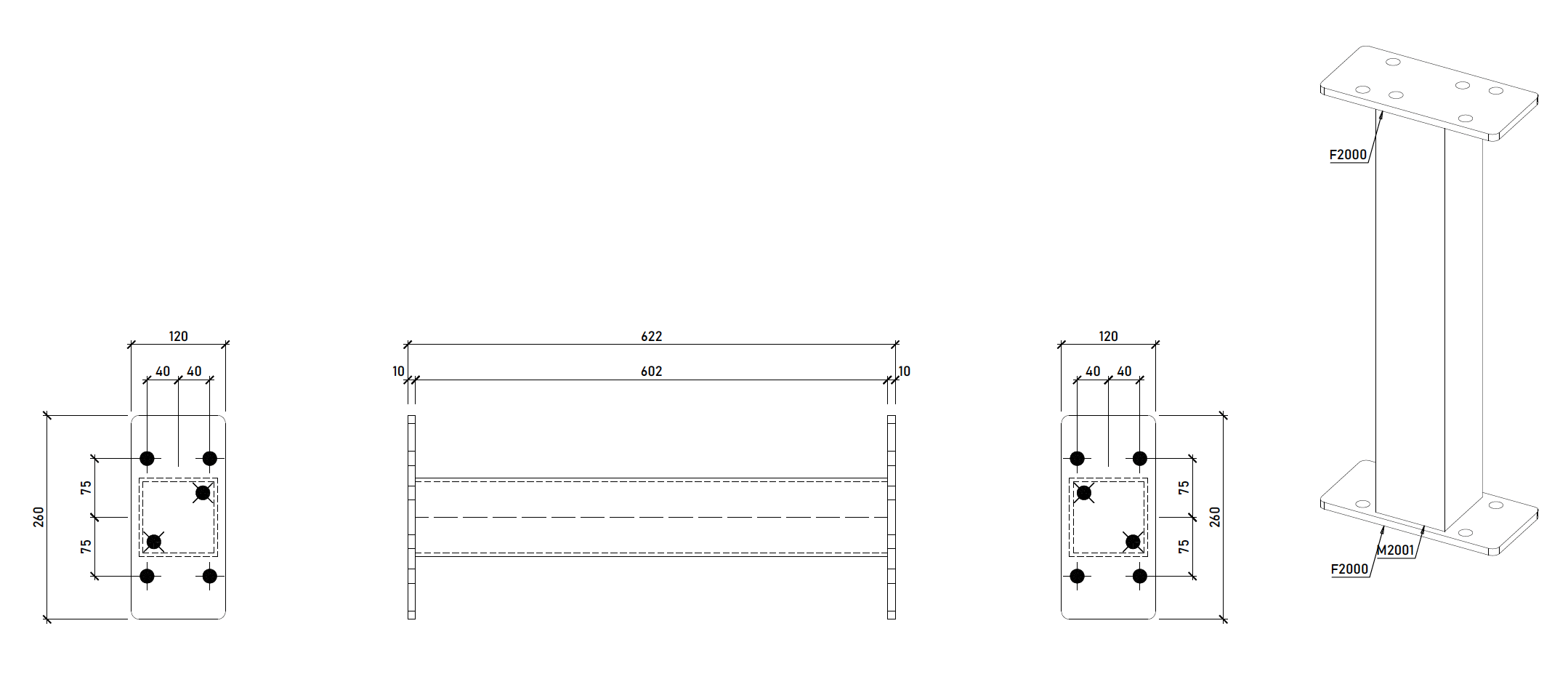

  • 622mm stool

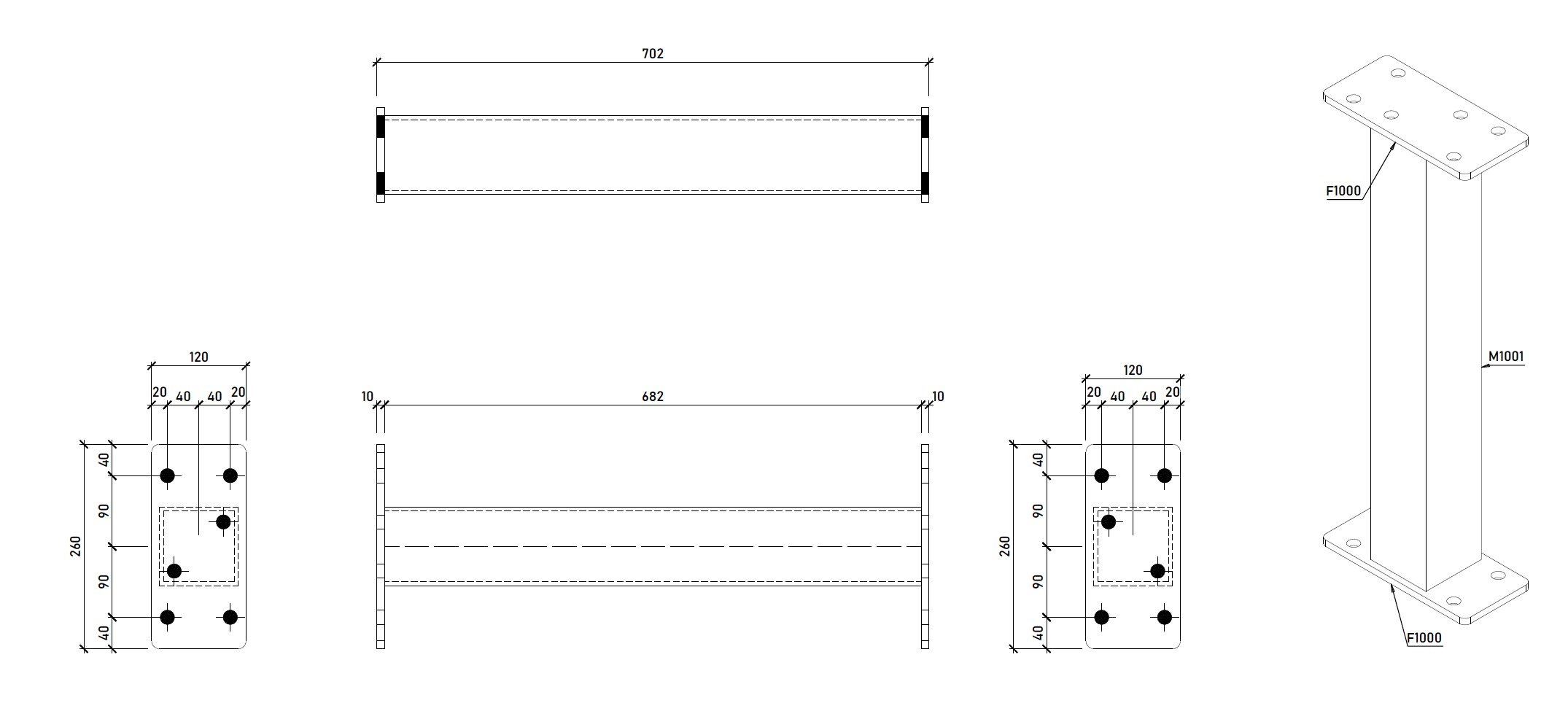

  • 702mm stool

Drilled and hot dip galvanised.

  • Finish: Hot dip galvanised (approx. 85 micron)
  • Condition: Used – surplus from completed installation
  • Storage: Indoor dry warehouse storage
  • Sale type: Complete job lot only
  • Splitting: Not available
  • Location: Bristol, UK
  • Collection: Preferred
  • Delivery: Available at cost

Buyer responsible for structural design, calculations and suitability.

FAQ's

What Is a Self Supporting Meat Rail System?

A self supporting meat rail system is a structural framework designed to carry the full load of carcasses and rail equipment without relying on existing building steel or roof structure.

This is typically used where:

  • Roof purlins cannot take load

  • Building structure is insufficient

  • Independent rail runs are required

  • Retrofit installations are being carried out

Structural legs and universal beams form a freestanding frame, with stools or brackets supporting the twin track or tubular rail system.

If you are looking for new design and installation of a self supporting meat rail system, AES Food Equipment can supply complete engineered solutions.

Delivery & lead times

Availability

This galvanised structural steel job lot is in stock and available immediately.

All material is stored indoors in dry warehouse conditions in Bristol.

Collection

Collection is preferred.

On-site loading available by prior arrangement.

Please contact us in advance to schedule a collection time.

Delivery

Delivery can be arranged at cost.

This lot includes long universal beams (up to 4000mm) and heavy galvanised structural sections. Delivery will typically be via:

  • Dedicated transport
  • Hiab vehicle (if required)
  • Specialist pallet or steel carrier

Delivery costs depend on:

  • Postcode
  • Site access restrictions
  • Offloading requirements

Contact us with your postcode and site details for an accurate delivery quotation.

Lead time

Immediate availability.

Collection or dispatch can normally be arranged within 2–3 working days of cleared payment.

Important

  • Sold as one complete job lot
  • No splitting
  • Buyer responsible for structural design, calculations and suitability
  • Delivery quoted separately unless agreed in writing
